Page 1
background image

About Warnings



WARNING:

A WARNING indicates a potential for property damage, personal injury,

or death.

Coupling Two Racks



WARNING:

Because of the size and weight of the rack cabinets, never attempt

to couple two rack cabinets by yourself.



NOTE:

For complete rack installation instructions, see your rack installation guide.

1 Unpack and set up both racks.
2 Unpack the coupling kit, shown in Figure 1-1.

The contents of the rack coupling kit include:

One gasket strip

Four coupling brackets

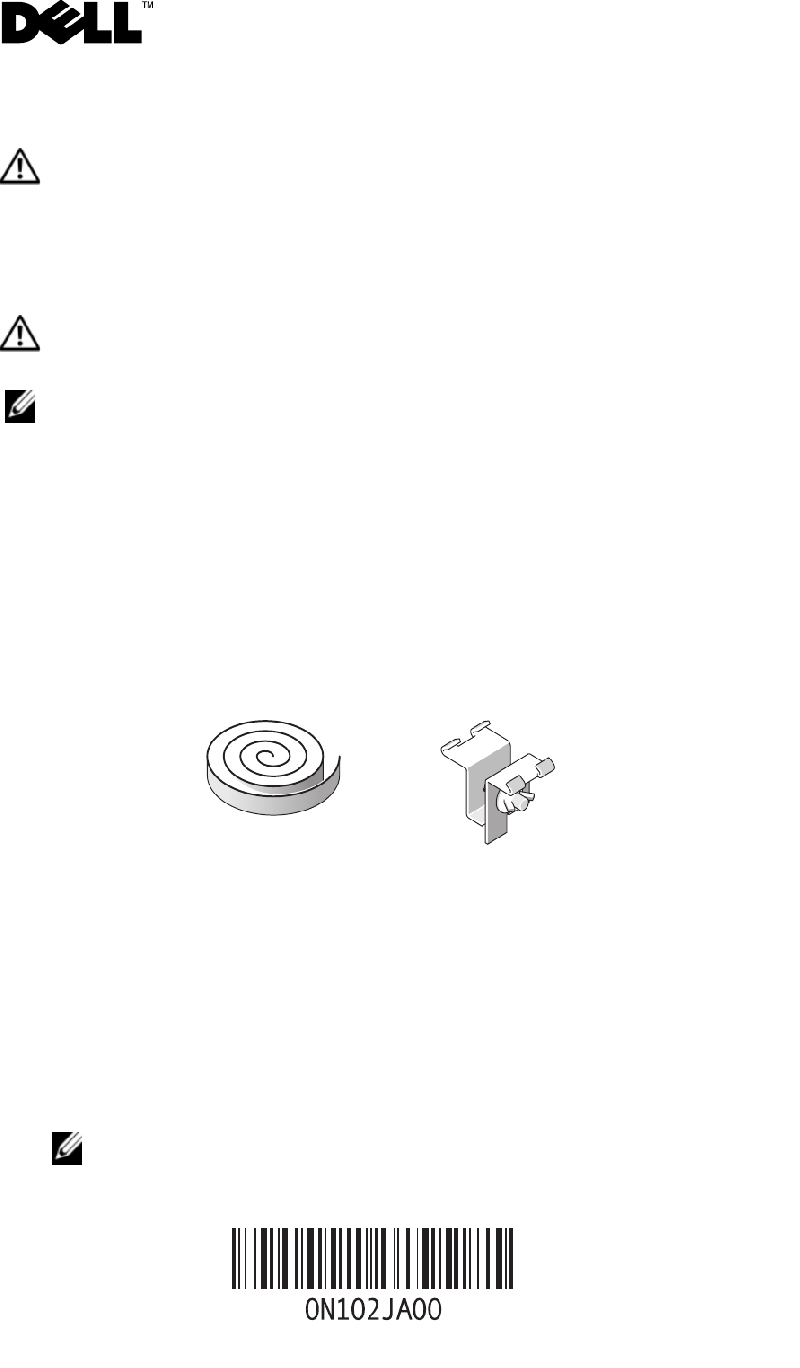

Figure 1-1.

Rack Coupling Kit

3 Remove the doors and side panels from both racks. See "Removing the Front

Door", "Opening and Removing the Back Doors", and "Removing and
Replacing the Side Panels" in your rack installation guide.

4 Cut and place a segment of the gasket strip, with its protective backing

removed, on one of the racks along the frame surface to be in contact with
the adjacent rack (see Figure 1-2).



NOTE:

It does not matter on which rack you place the gasket strips,

as long as the strips protect both racks from being scratched.

1

gasket strip

2

coupling bracket (4)

1

2
