A–2 16021520 Rev. 0 ©2002 Maytag Appliances Company
Programming Instructions for RCS10, P1140411M
Pads 1-0 -
Use to begin heating with preprogrammed times.
Hidden Pads -
Use Hidden Pad to activate and deactivate numbered
pads, and to program times.
Quick Reference Instructions
Read “Important Safety Information” before using “Quick
Reference Instructions”. If there are unanswered
questions, see detailed sections of this manual.
Interrupting Operation
Open oven door or press RESET pad to interrupt
operation. Oven fan continues to operate. Display
continues to show countdown time. Close door and
press START pad to resume oven operation.
Canceling Mistakes
If oven is not operating, press RESET pad to clear
display.
If oven is operating, press RESET pad once to stop
oven, then again to clear display.
If oven door is open and time shows in display, close
oven door and press RESET pad to clear display.
Operating Preprogrammed Pads
1. Open oven door, place food in oven, and close oven
door.
2. Press desired number pad.
3. Oven stops heating and oven signal sounds when
heating timing elapses.
Preprogrammed Number Pads
1. Open oven door.
2. Press and hold pad 1 for approximately 15 seconds.
3. Press numbered pad to be programmed.
4. Press hidden minute or second pad to enter desired
cooking time.
5. Press numbered pad to save new heating time in
oven memory.
6. Close oven door to exit programming mode.
Deactivating Numbered Pad
1. Open oven door.
2. Press and hold pad 1 for approximately 15 seconds.
3. Press numbered pad to be deactivated.
4. Press hidden minute pad and continue to press until
“Pd:dd” shows in display.
5. Press numbered pad to deactivate pad.

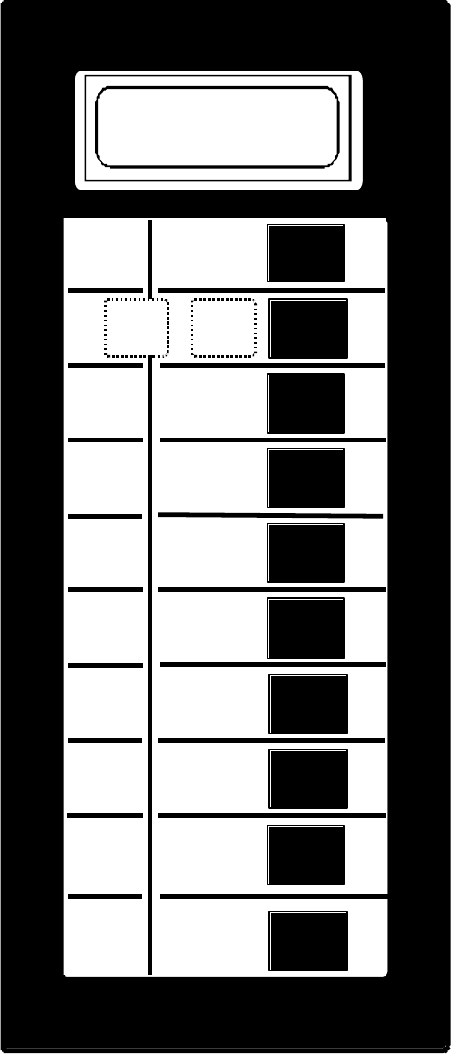

1
2
3
4
5
6
7
8
9
0
Hidden
Minute
Pad
Hidden
Second
Pad
88:88
MICRO DEFR WARM MEDHI
POWER
HOLD
TIMER
READY
CLOCK
COOK
LEVEL
8
Preprogrammed Times
The oven is shipped with the following Single Programs
factory-set to operate at full power.
PAD NO. FACTORY PRESET TIME
1 10 seconds
2 20 seconds
3 30 seconds
4 45 seconds
5 1 minute
6 1-
1
/2 minutes
7 2 minutes
8 3 minutes
9 4 minutes
0 5 minutes
